Monicon Four Channel Control Panel

Mechanical Specifications
Height 230mm Width 300mm Depth 110mm
Weight 3.5Kg (including optional 1.2AH battery, if fitted)
Mounting holes 4 holes, Ø4.2mm, spaced at 200mm (vert) 288mm (horz)

Environmental Specifications
Operating temperature -18˚C to +66˚C
Storage temperature -40˚C to +66˚C
Humidity range 10%RH to 90%RH (Non-condensing)

Electrical Specifications
Supply voltage 230Vac ±10% (115Vac ±10% optional)
Power consumption 6W
Mains fuse 1A’T’
Transformer secondary fuse 1A PCB mounted 5 x 20mm fuse
Battery fuse 1.5A PCB mounted, auto reset, PTC fuse
Sensor cables 3 core, screened, 0.5mm2 to 1.5mm2
Relay contacts SPDT, 250V, 3A each for A1, A2, Common A3 & FAULT (10 relays)
Analogue outputs 4-20mA into maximum 250 Ω for each channel
RS485 operating mode Slave mode, half duplex, polled
Max. units on RS485 loop 25 controllers (100 channels)
RS485 communications parameters 1200-N-8-1
RS485 error checking 1 byte checksum
Unit interrogation time 40mS
Battery operation time 1.2AH battery: typically 2 hours with all 4 detectors fitted
Battery voltage 12V
Battery type Sealed lead-acid
Combustible gas sensor type Monicon CGS500 or compatible third-party sensor
Toxic gas sensor type Monicon T100, or compatible 4-20mA transmitter
Stabilisation time User selectable between 1 and 255 seconds
Annunciator output 2.5kHz, 84dB(A) @ 1m
Transient protection PCB mounted Metal Oxide Varistor
Terminations PCB headers & detachable terminal blocks up to for 1.5mm2 cable
Option setting Digital setting (all options fitted as standard and user selectable)
Alarm setting Digital setting (fully adjustable between 10% and 90% of full scale)
Alarm types Energised/de-energised. Enrichment/deficiency. User selectable
Resolution 1%
Accuracy 5%
Full scale range 1.00 to 5000 (user selectable)
User variable storage Non-volatile RAM (EEPROM)
Enclosure material Two-piece, hinged, ABS or polycarbonate with neoprene gasket
Electromagnetic Conformance (EMC) Complies with EN50081, EN50082 and EN50270

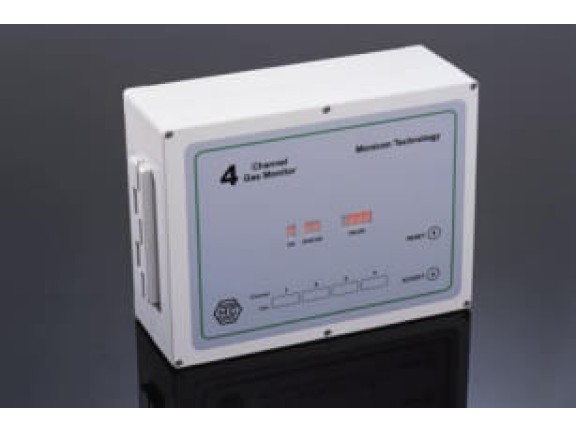

The Monicon 4 Channel Gas Monitor is an innovative, cost effective, wall mounted unit. It is
designed to operate in conjunction with the T100 toxic gas detector and the highly successful CGS500
combustible gas sensor to monitor a range of toxicgases, combustible gases and oxygen in a wide
range of applications.


The 4 Channel Gas Monitor is also compatible with a wide range of third party 4-20mA transmitters
including temperature probes. The gas concentration is indicated on a 4-digit, 7-segment
display while another 2-character alphanumeric display indicates instrument status. A third display
indicates the active channel.


Simple to use and microprocessor controlled, the 4 Channel Gas Monitor is menu assisted and fully user
programmable for alarm setpoints, relay options, range, sensor type, gas type and many other
parameters in a user friendly manner offering unique flexibility and control over the system.
The Monicon 4 Channel Gas Monitor has a built in battery trickle charger circuit and an optional
12V, 1.2AH rechargeable battery (sealed lead-acid type) may be fitted inside the enclosure to ensure
uninterrupted operation in the event of a mainspower failure.


Careful product design and rigorous product testing combined with a stringent ISO9002 quality
assurance program at Monicon’s state-of-the-art manufacturing facility ensure ultimate reliability.
The Monicon 4 Channel Gas Monitor offers a robust, easy to use, cost effective approach to providing
an effective gas monitoring system where safety matters.

Product Details

  • Brand: Monicon
  • Product Code: C45000
  • Availability: Call for availability
  • £680.00
