Monicon Single Channel Control Panel

Mechanical Specifications
Height 160mm
Width 240mm
Depth 90mm
Weight 3.0Kg (including optional 1.2AH battery, if fitted)
Mounting holes 4 holes, Ø4.2mm, spaced at 130mm (vert) 288mm (horz)

Environmental Specifications
Operating temperature -18˚C to +66˚C
Storage temperature -40˚C to +66˚C
Humidity range 10%RH to 90%RH (Non-condensing)

Electrical Specifications
Supply voltage 230Vac (115Vac optional)
Power consumption 5W
Mains fuse 1A’T’
Transformer secondary fuse 1A PCB mounted 5 x 20mm fuse
Battery fuse 1.5A PCB mounted, auto reset, PTC fuse
Sensor cables 3 core, screened, 0.5mm2 to 1.5mm2
Relay contacts SPDT, 250V, 3A each for A1, A2, A3 & FAULT (4 relays)
Analogue outputs 4-20mA into maximum 250 Ω (current “source”, ground referenced)
Battery operation time Typically 4 hours with fully charged 1.2AH battery (T100 sensor)
Battery voltage 12V
Battery type Sealed lead-acid
Combustible gas sensor type Monicon CGS500, CGS100 or compatible third-party sensor
Toxic gas sensor type Monicon T100 or compatible 4-20mA transmitter
Stabilisation time User selectable between 1 and 255 seconds
Annunciator output 2.5kHz, 84dB(A) @ 1m
Transient protection PCB mounted Metal Oxide Varistor
Terminations PCB mounted terminal blocks up to for 1.5mm2 cable
Option setting Digital setting (all options fitted as standard and user selectable)
Alarm setting Digital setting (fully adjustable between 10% and 90% of full scale)
Alarm types Energised/de-energised. Enrichment/deficiency. User selectable
Resolution 1%
Accuracy 5%

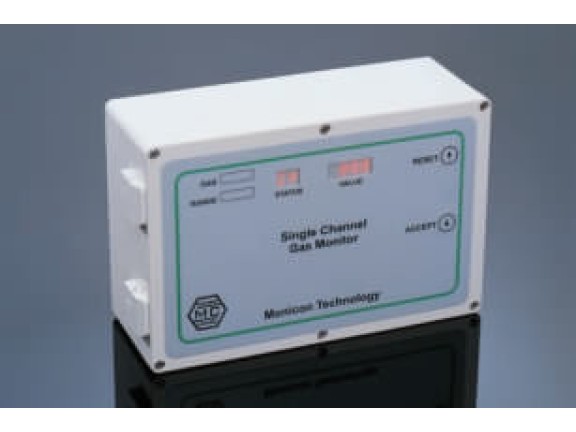

The Monicon Single Channel Gas Monitor is an innovative, cost effective, wall mounted unit. It is designed to operate in conjunction with the T100 toxic gas detector and the highly successful CGS500 combustible gas sensor to monitor a range of toxic gases, combustible gases and oxygen in a wide range of applications.

The Single Channel Gas Monitor is also compatible with a wide range of third party 4-20mA transmitters including temperature probes. The gas concentration is indicated on a 4-digit, 7-segment display while another 2-character alphanumeric display indicates instrument status.

Simple to use and microprocessor controlled, the Single Channel Gas Monitor is menu assisted and fully user programmable for alarm setpoints, relay options, range, sensor type, and many other parameters in a user friendly manner offering unique flexibility and control over the system.

The Monicon Single Channel Gas Monitor has a built-in battery trickle charger circuit and an optional 12V, 1.2AH rechargeable battery (sealed lead-acid type) may be fitted inside the enclosure to ensure uninterrupted operation in the event of a mains power failure.
Careful product design and rigorous product testing combined with a stringent ISO9002 quality assurance program at Monicon’s state-of-the-art manufacturing facility ensure ultimate reliability.

The Monicon Single Channel Gas Monitor offers a robust, easy to use, cost effective approach to providing an effective gas monitoring system where safety matters.
